The relationships and statuses of the various entities are visible within Pipeline Studio. When you select an entity, a detail panel opens on the right side of the canvas. Use the Details and Relationships tabs to navigate between a list view and the visual relationship map.

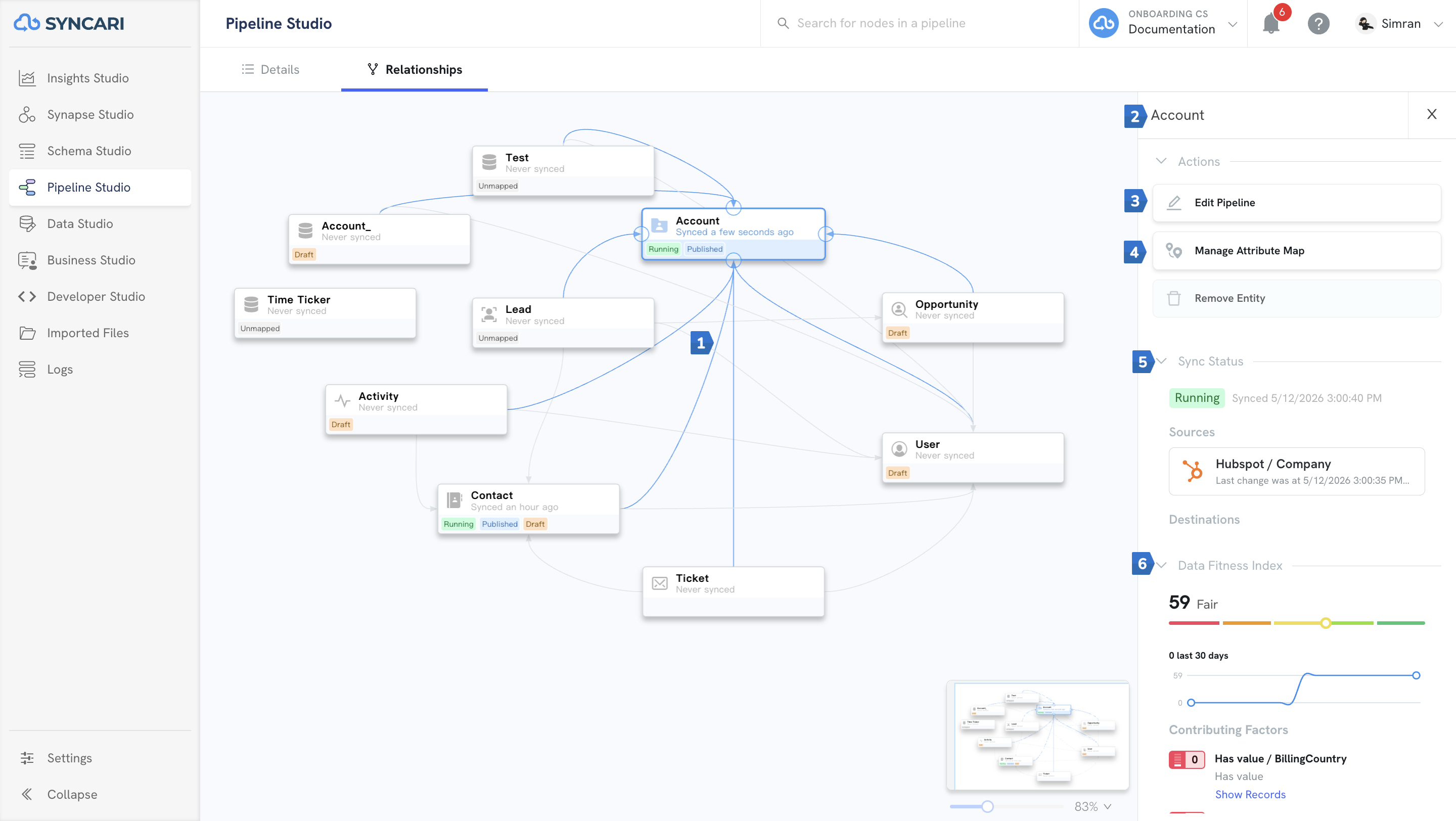

Review this image for information about Pipeline Studio's selected entity features:
1. Connecting lines - The lines between entity cards define the relationships between entity pipelines. Each line indicates that a reference attribute exists between the two entities. For example, the Account entity shown here has reference attributes connecting it to Activity, Opportunity, Lead, User, Ticket, Contact, and more.
2. Selected entity panel - Opens when you click an entity card on the canvas. The panel title shows the selected entity name (here, Account) and contains three collapsible sections: Actions, Sync Status, and Data Fitness Index. Click X to close the panel.
3. Edit Pipeline - Opens the entity pipeline for the selected entity, where you can configure transformations, and attribute-level pipelines.
4. Manage Attribute Map - Opens the attribute mapper for the selected entity, where you can define attribute mappings.
5. Sync Status - Shows the current sync state of the entity pipeline. Displays the status badge (e.g., Running), the last sync timestamp, the Sources supplying data to this entity, and the Destinations this entity writes to.
6. Data Fitness Index - Summarizes data quality for the selected entity. Displays a score (0–100) with a label such as Fair, a 30-day trend graph showing score changes over time, and Contributing Factors, the individual data quality rules affecting the score, with a Show Records link for deeper investigation.
